Dawn: Data Acquisition With Apache NuttX
Dawn is a new open-source project for building embedded data acquisition and control devices on top of Apache NuttX.
It started from a common problem: many embedded projects need the same kind of firmware infrastructure, and too much of that work still gets rebuilt from scratch. I wanted to turn more of that repeated work into something reusable.
Dawn is the result of that effort. It took much longer than I expected, changed shape several times, and grew far beyond the original idea, but it has finally reached a point where it is worth introducing publicly.
Motivation and history
Dawn is a new project, but some of its roots go back to my master's thesis. Back then, I designed and built a pulse generator for WEDM (electrical discharge machining): a 1.5 kW full-bridge switching power supply with an additional pulse-forming block, controlled by an STM32F334 microcontroller.
That project made me think about a more universal platform for similar power-electronics applications: a reusable control board and firmware built from common blocks. I called that idea UniSP (Universal SMPS Platform).
The reusable control board was built, but the general firmware was left for later. During the thesis project there wasn't enough time for that part, especially because a lot of time went into debugging high-power switching issues. Many MOSFETs died along the way :)
After finishing my studies, my interest in power electronics slowly moved into other topics. I put UniSP aside, but the idea of building embedded devices from reusable firmware blocks stayed with me.

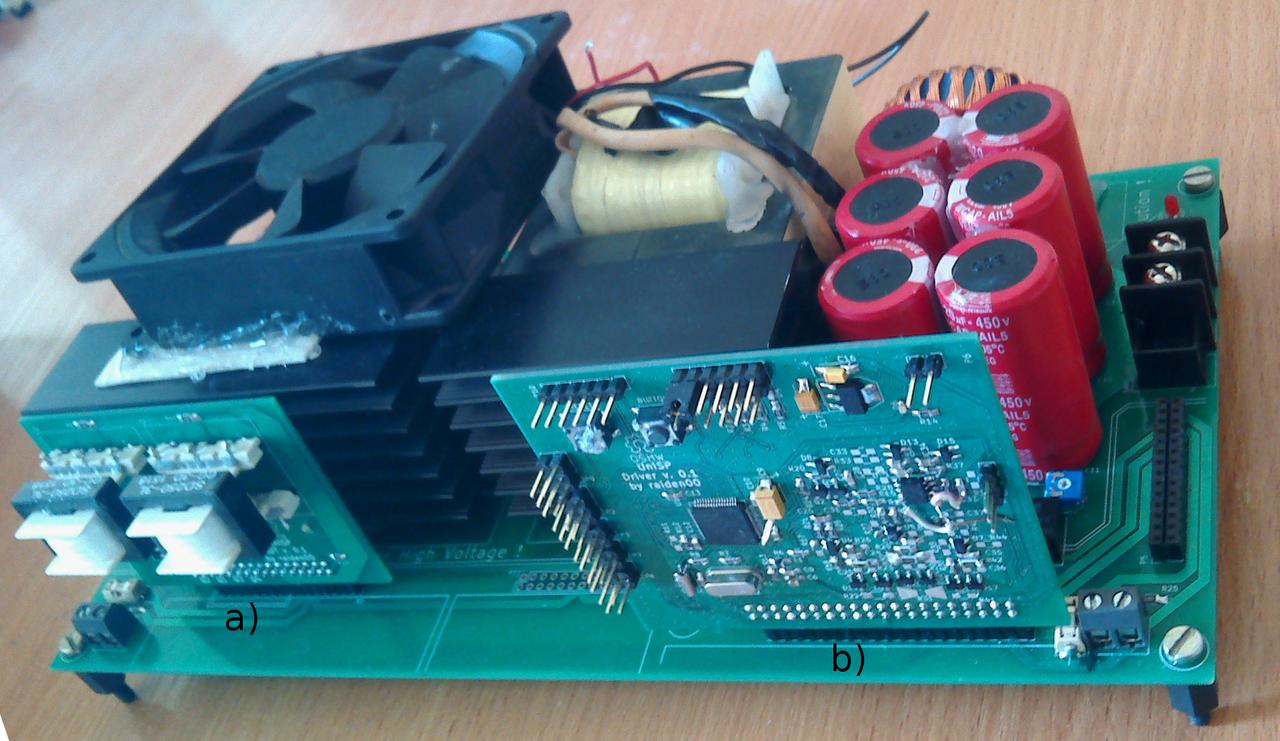

Full-bridge power supply with UniSP module.
Later, near the beginning of my embedded career, I was introduced to NuttX through a task at my first job. What caught my attention was its modular architecture, standardized APIs, and the possibility of writing applications that are more portable and reusable than typical project-specific embedded firmware. This matched the kind of software I always liked: modular applications, reusable tools, and systems that help build other systems.
Much later, in October 2023, I created a NuttX issue that became the first direct step toward Dawn: apache/nuttx#11088. At that point, this was still supposed to be just a NuttX application. I wanted to demonstrate NuttX on Nordic Thingy boards (Thingy:52, Thingy:53, and Thingy:91), while keeping the application generic enough to also work on similar sensor boards, such as ST SensorTile.
The Thingy application didn't end up in NuttX. The challenge was bigger than just a demo application: how to describe sensors, generated values, configuration, local processing, and communication protocols in a reusable way?
That is where Dawn started. The name is a simple acronym:
Data Acquisition With NuttX.
At first, the goal was simply to build embedded node devices from reusable parts. The details changed over time, but the direction stayed the same.

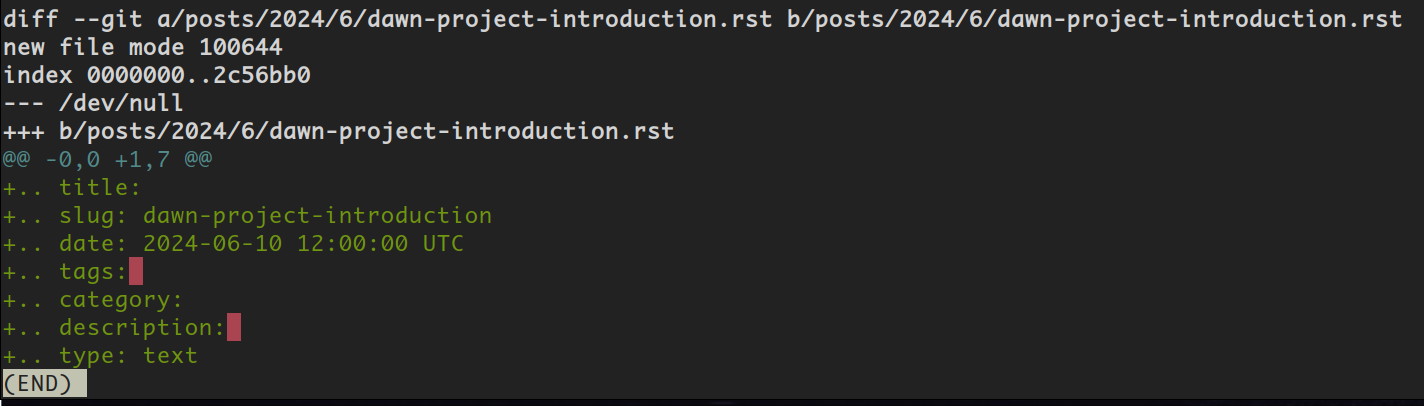

I even kept an initial draft of this post in my local repository for almost two years. The problem was much bigger than I initially thought, and everything was built in my spare time. The design kept changing, important missing pieces were added to NuttX along the way, and new use cases kept showing up.
The project kept growing while I was trying to make the overall direction clear. I kept adding more and more things, and it started to feel like a never-ending spare-time project. At some point, the hard part was no longer adding another feature, but keeping the whole project testable and moving forward.
For a project like Dawn, manual testing is not realistic. There are too many components that require different test setups. NTFC (NuttX Testing Framework) became the missing piece here: it made it possible to automate complex integration tests on the NuttX simulator, QEMU, and hardware-oriented configurations.
This is how Dawn reached its current shape: reusable embedded building blocks, NuttX portability, automated testing, and tools that make the project manageable. The goal is still the same as at the beginning: spend less time rebuilding firmware infrastructure and more time building funny things.
Project scope
Dawn targets descriptor-defined embedded nodes: devices that read inputs, write outputs, run local processing, and expose selected data or control points through one or more protocols.
This model fits many DAQ/control-style devices, from simple sensor or actuator nodes to custom lab tools, protocol demos, and test devices.
Basic model
Dawn devices are composed from three main object families:
IO objects,
Program objects,
Protocol objects.
IO objects represent data sources, outputs, configuration values, control points, or virtual containers.
Program objects implement local processing, routing, filtering, buffering, and other kinds of work that can be done on the edge.
Protocol objects expose selected IO and program data to the outside world through interfaces such as shell, BLE, Modbus, CAN, and others. In some cases, the "outside world" can also mean another application in the same firmware image or in an AMP system, for example, a GUI application.
Descriptors
Dawn devices are defined by descriptors. A descriptor defines which IO objects, programs, and protocols exist, how they are configured, how they are connected, and how the device is structured internally.
Internally, a descriptor is just a 32-bit-word array. This is the format used by the firmware runtime itself and a key element of the entire architecture.
On top of this format, Dawn provides higher-level representations for development and tooling. YAML is the main human-friendly format, while generated C++ source is used during the firmware build process. In the initial phase of the project, I wrote the descriptors in C++, but the introduction of YAML completely changed the game.
For example, a small blinky device controlled over Modbus RTU can be described like this:
metadata: title: Blinky Modbus RTU Demo os_required: - /dev/leds0 - /dev/ttyS1 ios: - id: led1 type: leds dtype: uint32 config: device: 0 - id: ctrl_blinky type: control config: targets: - blinky_seq1 allowed: - start - stop programs: - id: blinky_seq1 type: sequencer config: targets: - led1 states: - value: 0 dwell_us: 500000 - value: 1 dwell_us: 500000 protocols: - id: modbus1 type: modbus_rtu config: path: /dev/ttyS1 baudrate: 115200 registers: - type: coil start: 0 bindings: - ctrl_blinky - type: holding start: 0x0100 bindings: - led1
This descriptor creates an LED IO object, a sequencer program that toggles the LED, and a Modbus RTU protocol object that exposes control and state to an external master.
The normal build flow converts YAML into generated C++, and then into the final binary descriptor embedded into the firmware image.
Descriptors can also be loaded and switched dynamically at runtime, although this is still an experimental feature. The long-term direction is to make descriptors more independent from firmware images and enable more dynamic device configuration workflows.
Development ecosystem
Dawn is more than firmware runtime code. A significant part of the project lives in the surrounding development ecosystem: Python tooling for descriptor handling, project and build management, transport-specific host tools, and QA infrastructure.
That ecosystem is what makes the descriptor-based approach practical in day-to-day development. It covers descriptor validation and generation, project setup and build helpers, communication with running devices over supported transports, and repeatable automated testing across simulator, QEMU, and hardware targets.
It also supports out-of-tree, user-specific extensions, so custom objects and project-specific integrations can be added without forking the main project. Over time, I also want this ecosystem to grow toward template generators for common device patterns, producing YAML descriptors as a starting point instead of writing everything by hand.
Implementation and tradeoffs
The firmware part is written in C++. The project uses object-oriented abstractions quite heavily, but within fairly strict limits. C++ features are used with care: no exceptions, no dynamic allocation during normal runtime, and a general preference for deterministic and reliable behavior. Dynamic allocation is allowed only during the initial startup phase. Host-side tools are written in Python, because it is my main language for host applications.
Dawn adds an abstraction layer on top of Apache NuttX, and that has a cost: more memory usage and some CPU overhead. The goal is to keep these costs as low as possible using the usual NuttX approach: make components configurable with Kconfig and compile in only what is needed.
In this case, having many Kconfig options is not a flaw but part of the design. Some parts of Dawn are difficult for the compiler to eliminate automatically, so explicit configuration is needed to keep firmware size under control.
Where the project is now
Dawn is still early-stage, but it is already useful for experiments, rapid prototyping, simulator-based development, protocol demos, and custom development or test tools.
There are already enough building blocks to create useful applications:
I'm not sure yet what Dawn's long-term role will be. It may remain mostly a developer and lab tool, or it may grow into a base for more product-oriented systems.
For now, the focus is more practical: more ready-to-use descriptors, more examples, and more features for building custom DAQ/control devices. At some point, this may also mean returning to the UniSP idea mentioned earlier and trying to realize it with the more general approach now available with Dawn.
The public roadmap is available in the documentation:
The private idea list is much longer. If this topic is interesting to you, testing, feedback, and contributions are welcome.
Links
This post is only a short introduction. For details, see the documentation and source code:
